Refrigerant Air Dryers

Refrigerant Air Dryers


The Refrigerant Air Dryer that we have developed and designed, stands testimonial to SPIN AQM guiding factors: remarkable attention to detail, effort to provide the best quality and engineering prowess. Our dryer stands out from others by being a core product rather than being an accessory which comes along with a compressor package. A lot of research, planning and effort has gone into the product to make it one for the long run. So when we say it’s BUILT TO LAST, we mean it.

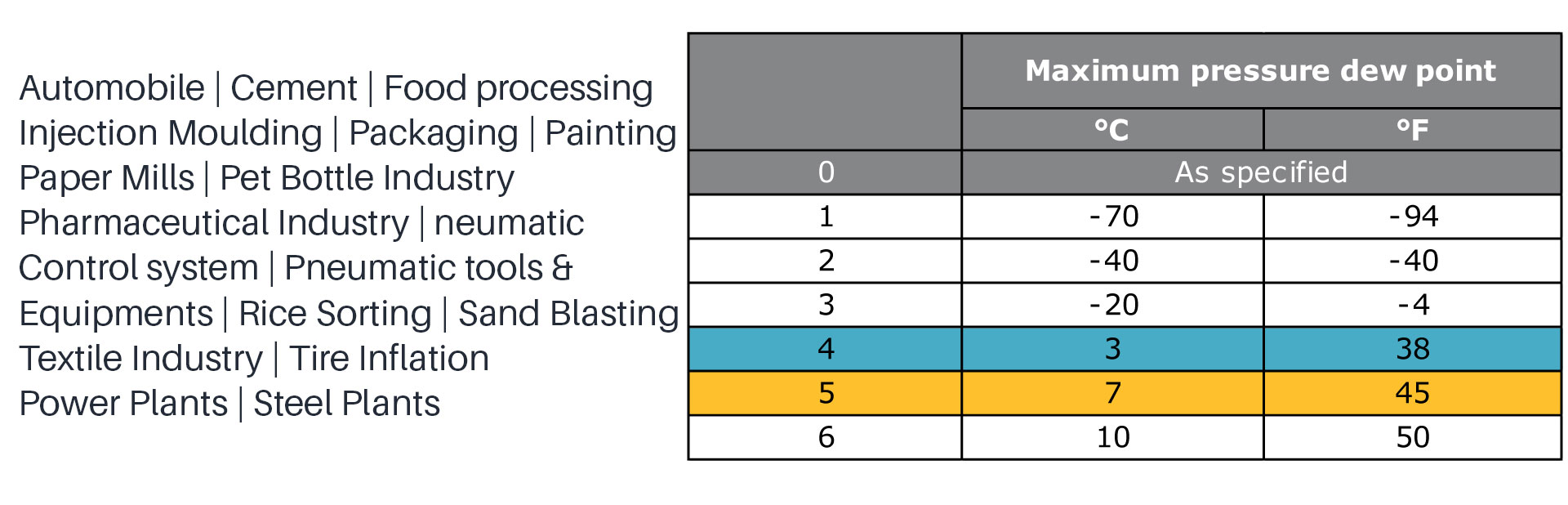

ISO 8573-1 Quality Spin AQM Refrigerant Air Dryer models can be used for applications that require ISO 8573 - 1 Class 4 & Class 5 air quality.

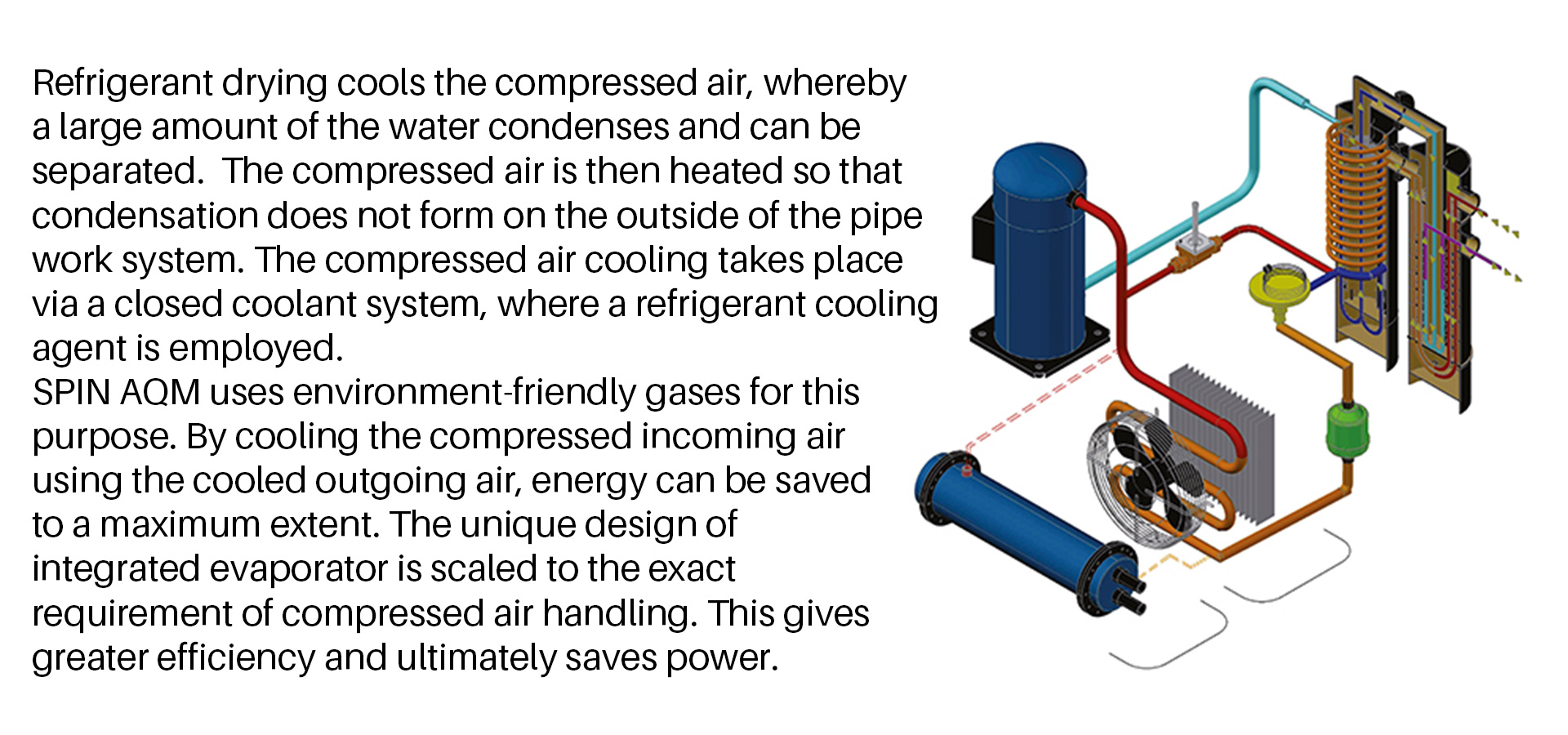

Working Principle

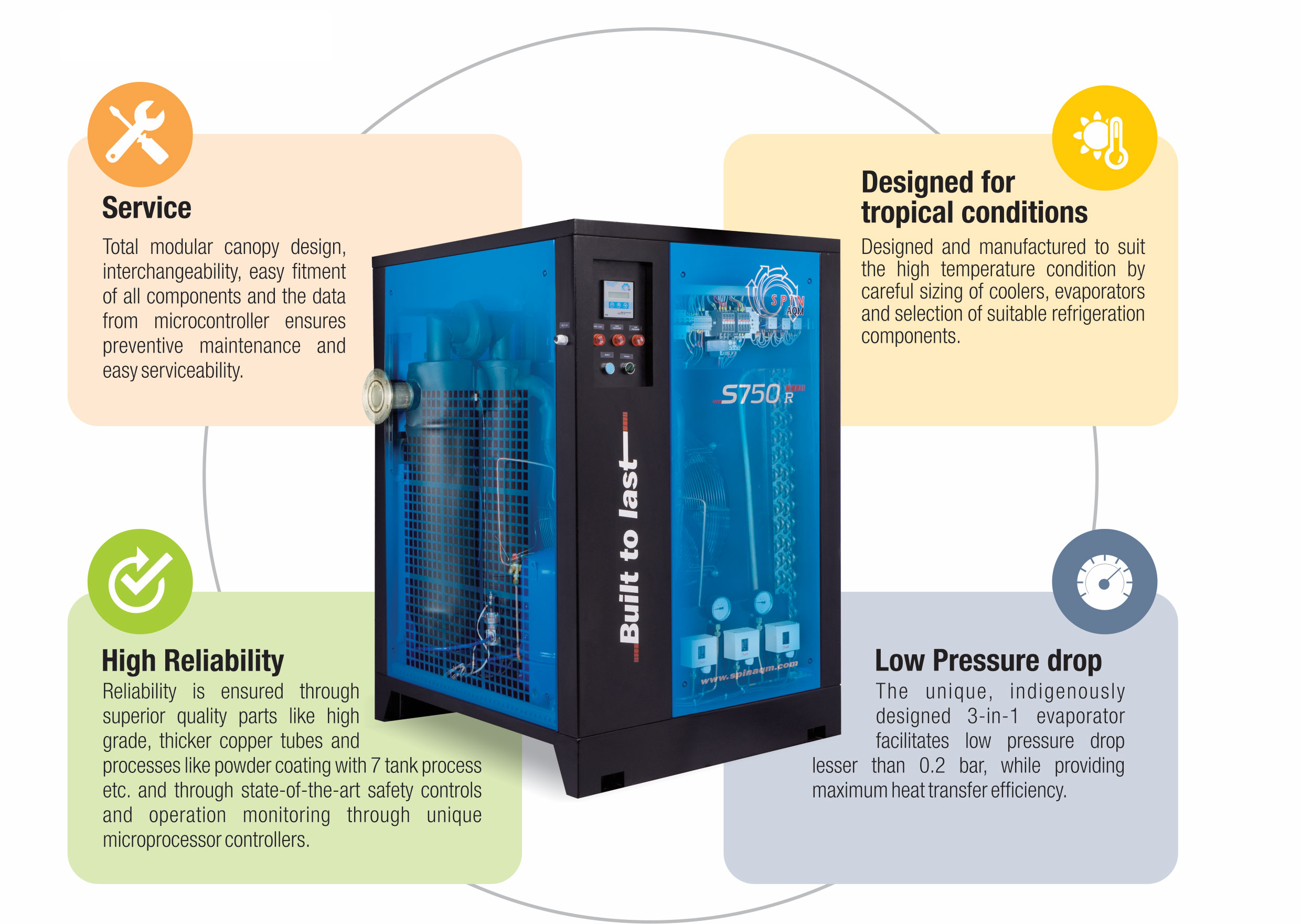

Salient Features


Application Areas

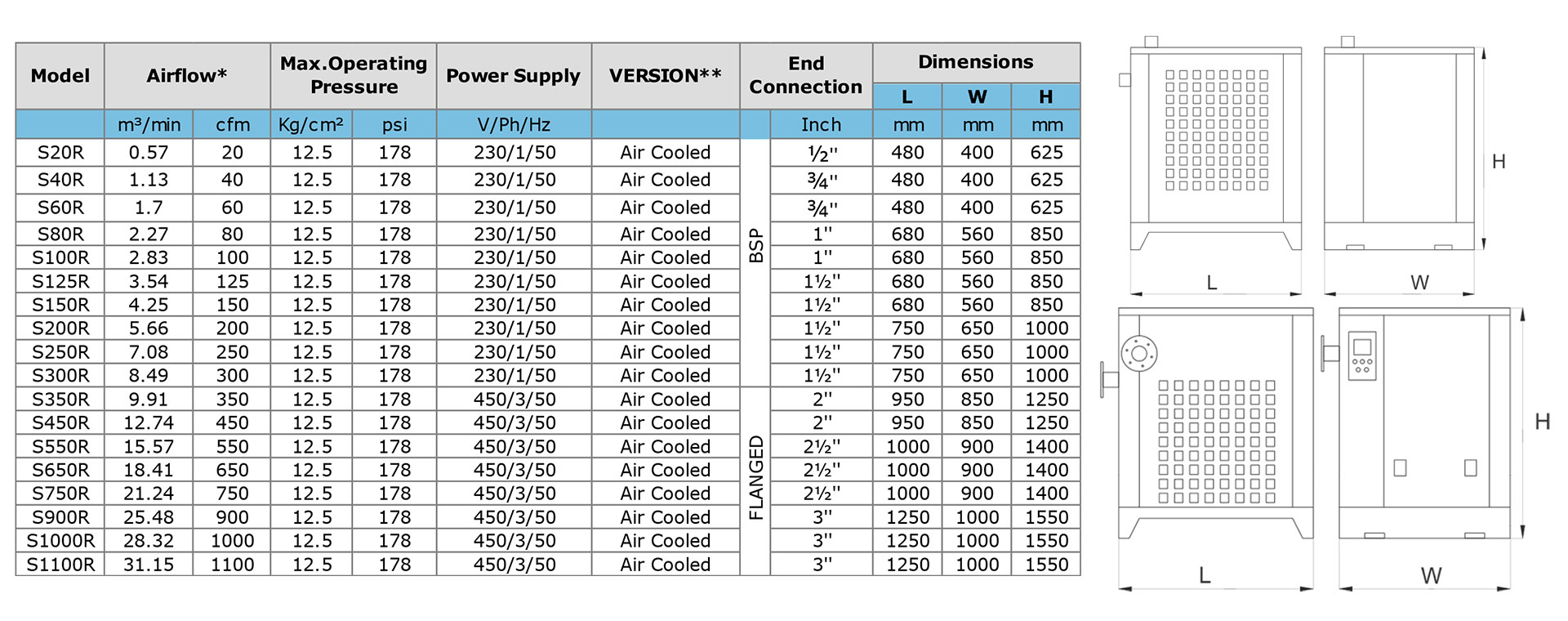

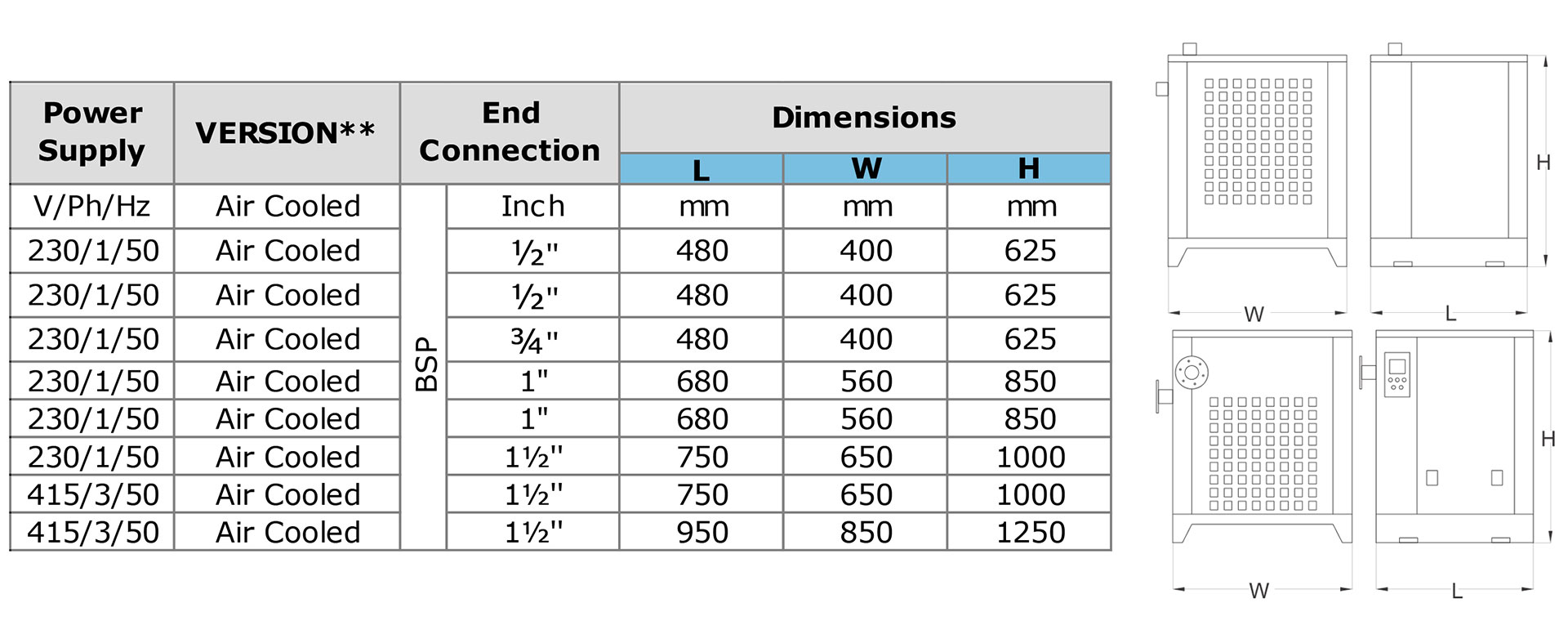

Technical Specifications


Note: Data for the dryers above 1100 cfm are available on request 0 0 2 0 0 * FAD based on 55 C inlet temperature and 45 C ambient temperature at 7 Kg/cm operating pressure and 3 C to 7 C pressure dew point

**Water cooled models starting from 550 cfm and above are available on request
Due to continuous engineering improvements, technical specifications are subject to change without prior notice.

Performance & Design Data

PERFORMANCE DATA BASED ON

Ambient temperature : 40°C
Inlet temperature : 45°C
Inlet pressure : 7 Kg/cm²
Pressure dew point : 3-7°C

DESIGN DATA

Max. Ambient temperature : 45°C
Min. Ambient temperature : 5°C
Max. Inlet temperature : 55°C
Max. Inlet pressure : 12 Kg/cm²

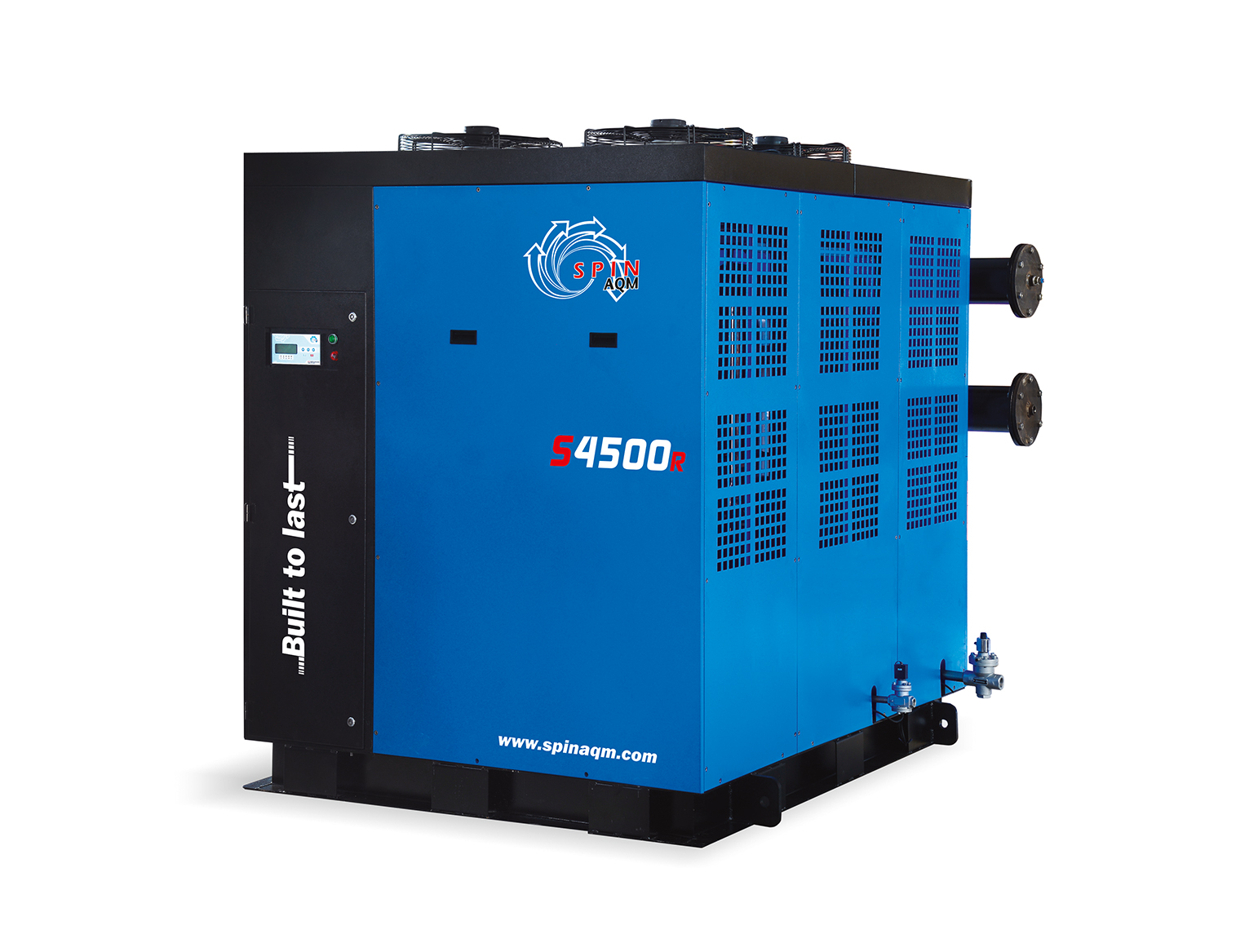

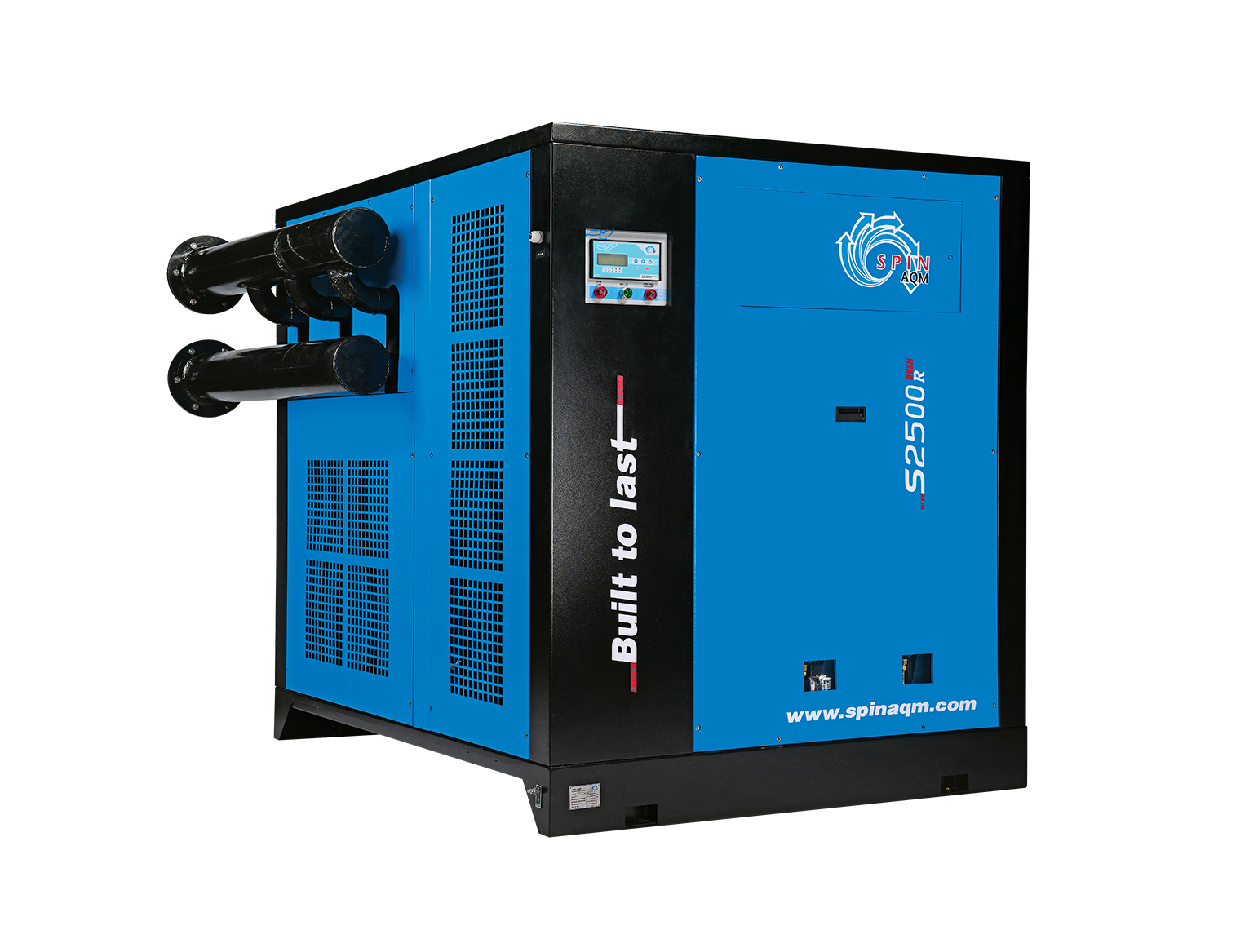

1.1. High Volume Refrigerant Air Dryers


SPIN AQM Higher Volume Refrigerant Air Dryers are designed for reliable performance in tropical conditions and perfect solution to deliver clean, dry high volume compressed air to suit continuous and variable load. It is designed in accordance with ISO 7183 standard.

Applications

Pharmaceutical Industry | Process Industry | Textile Industry Aeronautical Industry | Automobile industry | And Many Engineering Industries

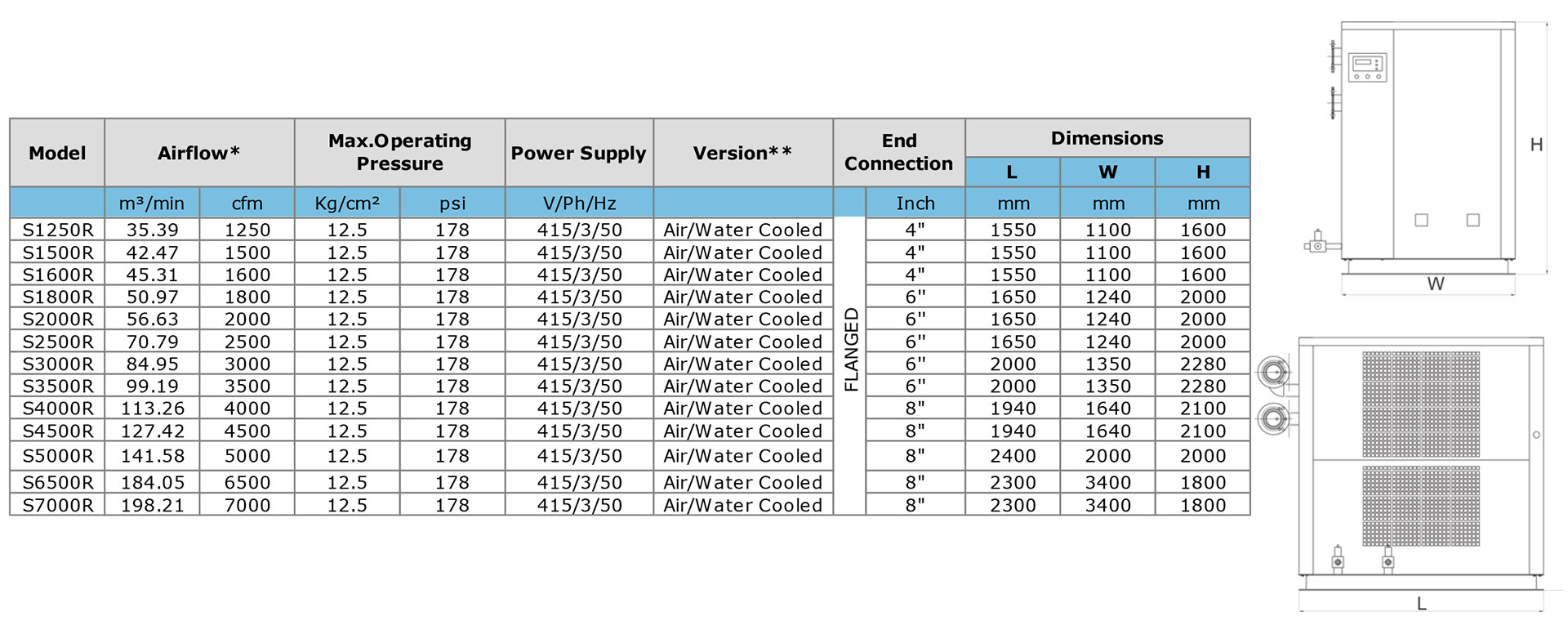

Technical Specifications


Due to continuous engineering improvements, technical specifications are subject to change without prior notice.

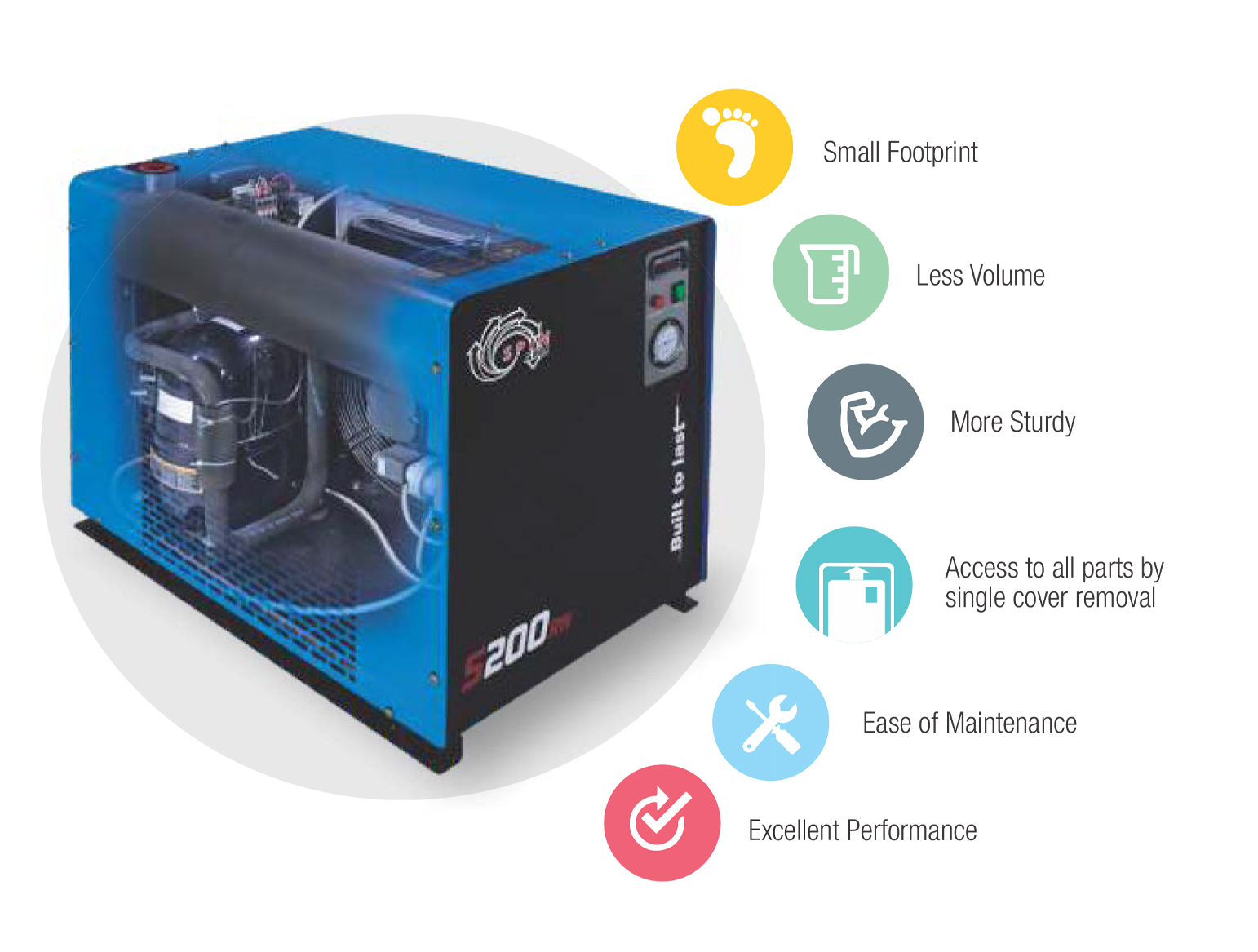

1.2. CUTE SERIES


SPIN AQM’s new CUTE Series Refrigerant Air Dryers are compact and sleek in design. They have the smallest volume and footprint with additional safety features. The compact yet clever design of the CUTE series ensures the best performance along with ease of service.

Salient Features


Applications

Automobile Service | CNC Workshops | CMM | Painting Hub | Foundry | Pump Industry | Hospitals

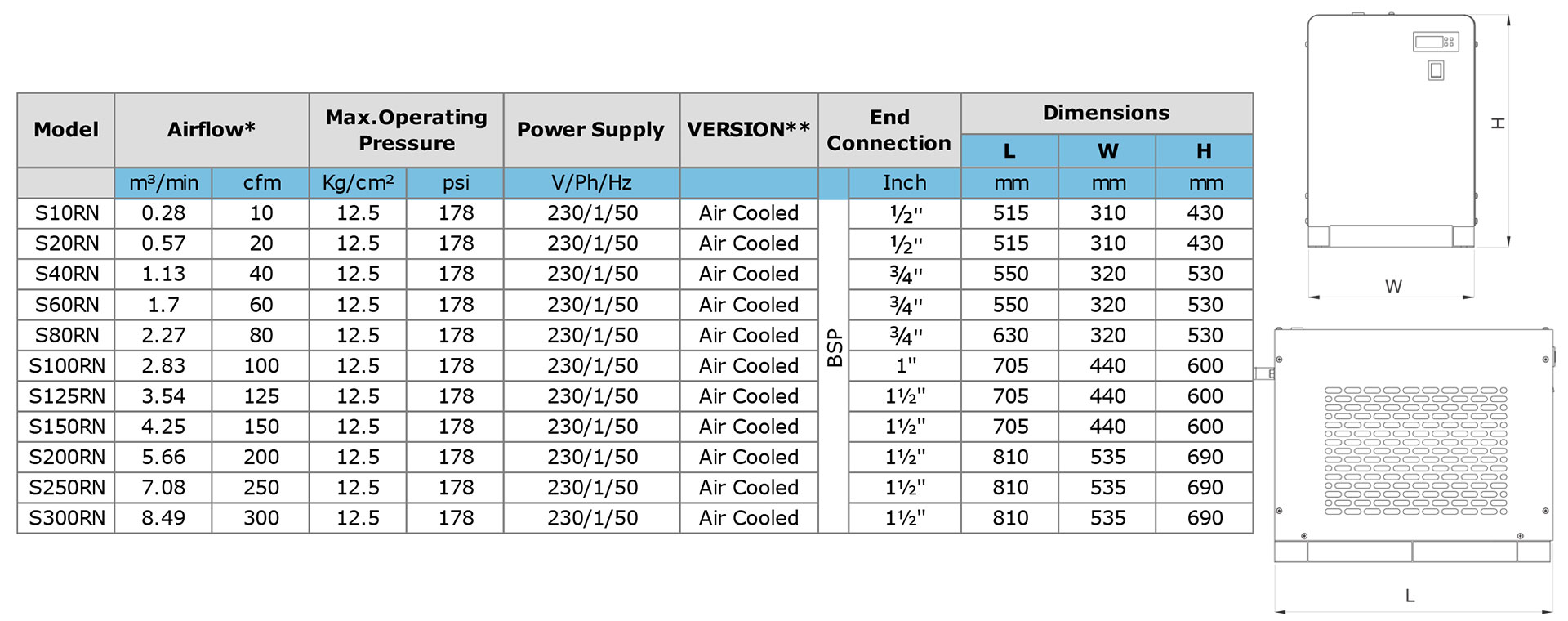

Technical Specifications


Due to continuous engineering improvements, technical specifications are subject to change without prior notice.

DESIGN DATA

Max. Ambient temperature : 40 C

Min. Ambient temperature : 5 C

Max. Inlet temperature : 50 C

Max. Inlet pressure : 12 Kg/cm

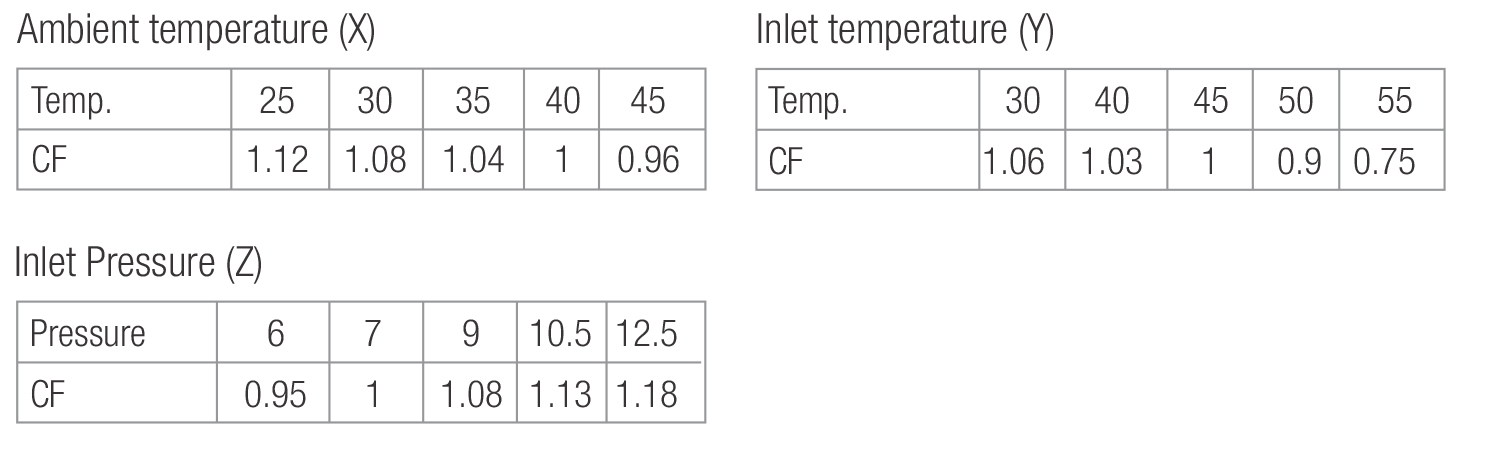

Flow Correction Factor

During the selection of the dryer, capacity correction to be used when operating conditions differ from performance data

To get dryer capacity based on conditions divide capacity by correction factors (X, Y, Z)

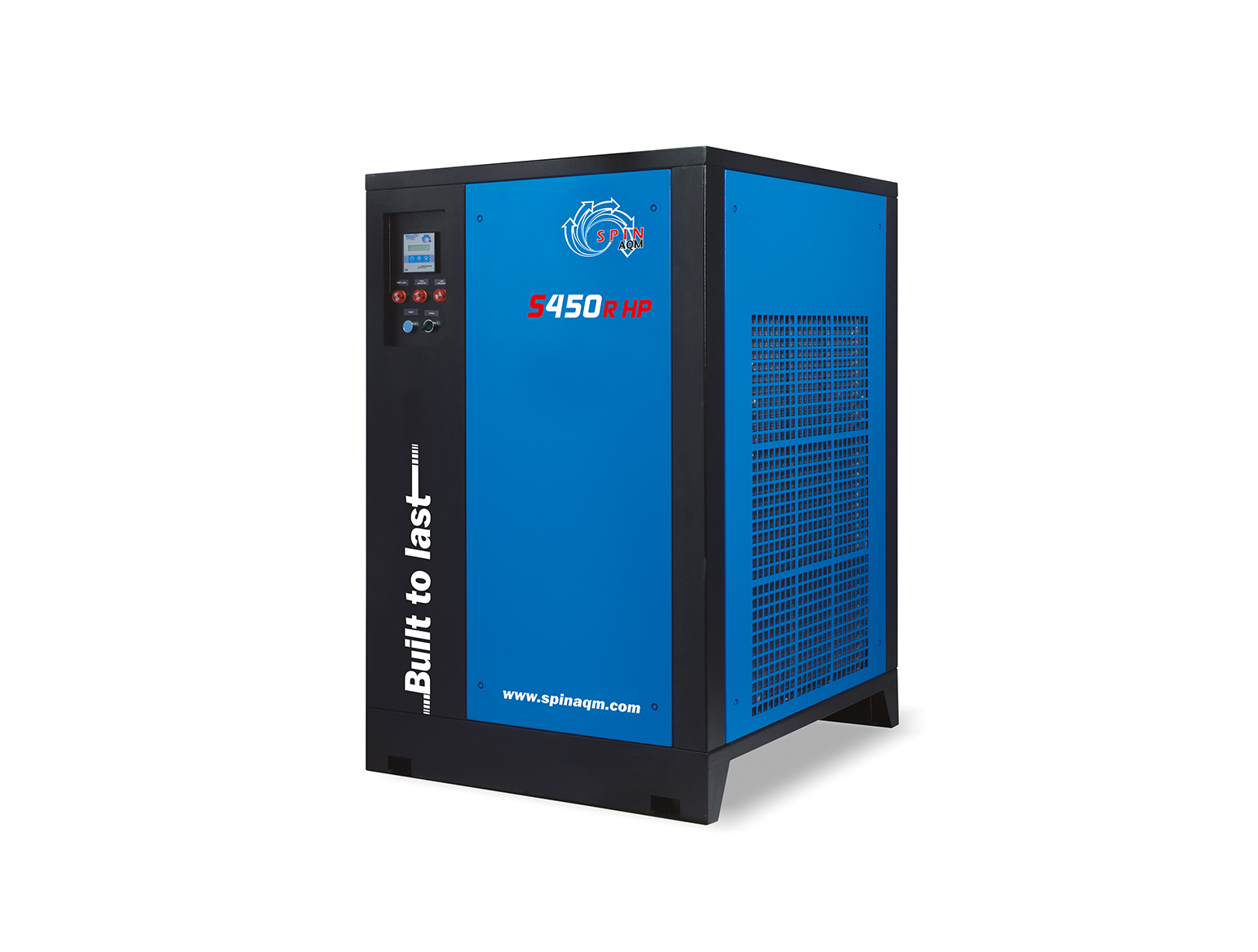

1.3. High Pressure Refrigerant Air Dryers


Refrigerant High Pressure Air Dryers are used wherever dry air at high pressure is required. Spin AQM provides HP Series Dryer with an operating pressure range of 40 Kg/cm with the 3 3 flow ranging from 20 cfm to 450 cfm ( 0.57 m / min to 12.74 m /min) with reliable high pressure design and unique safety features.

Applications

Aeronautical Industry | Circuit Breakers | Generator Starting - High Pressure | High Pressure Engine Starters | High Pressure Testing | Marine Applications | Turbine Cooling | Pet Bottling

Technical Specifications


Due to continuous engineering improvements, technical specifications are subject to change without prior notice.
